Two sided planer GTM-1020W

Product ID: GTM-1020W

Two sided planer - In order to ensure the smooth process, series GTM-1020W is designed to provide the feed- in from tip plug and multi-spindle power transports feed-out.

Two sided planer GTM-1020W

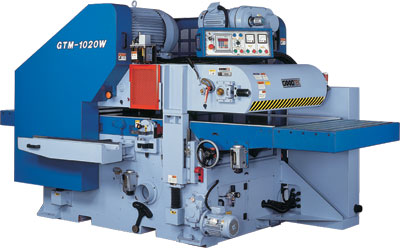

1020 m/m (40”) GTM-1020W Double- Surface Planer
In order to ensure the smooth process, series GTM-1020W is designed to provide the feed- in from tip plug and multi-spindle power transports feed-out. Our durable spiral cutter can cut woods in low noise and not easy to cause a stain on woods.


GTM-1020W could complete double surface processing at one time with fast feeding (7m ~ 20 m/min). For the clamp board width within 1M, the light sanding after double side planning could reach the effect of one side sanding and one side surfacing.

Feature

•Chrome hardness table is standard equipment
•Concentrated oil supply system and Auto oil injector system
•Digital readout
•Convenient and accurate front table adjustment
•There are two feed rollers and two rollers provided at the infeed and   outfed ends of the top cutter-head, infeed and outfeed extension roller
•Swiveling control panel
•Helical cutter-head rest (Bottom cutter head support base)
•Powerful transmission system
•Pneumatically operated disk brake

Specification Table

Double surface planer (40”)

GTM-1020W

Motor

40HP,30HP,7.5HP,1HP

Maximum width of plane

1020mm(40’)

Minimum thickness of cut

10MM

Cutter-head speed

5000RPM

Maximum thickness of cut

200MM

Minimum length of cut

310MM

Dust hood outlet diameter

6"

Helical cutter-head (TCT knife size)-top and bottom

15*15*2.5MM

Variable feed speed

8-24m/min-inverter
