Double side planer & rectangular rip saw
Product ID: GT-400R

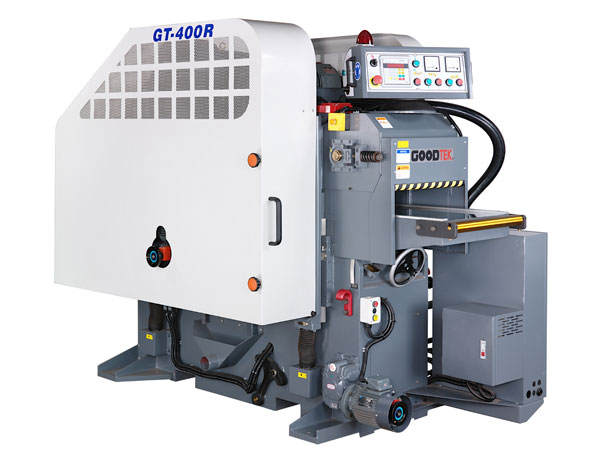

Double-Side Planer & Rectangular Rip Saw
GT-400R is special designed for furniture or prepare material factory which need to cut big timber for small quantity and different of process. Its maximum thickness of cut is 300mm and width of cut is 400mm. Just use it for twice, and then you can get four right angles and the plain surface.
If you remove the saw equipment, GT-400R will be the double side planer. The advantage of GT-400R is it does not need complicated setting of cutter-head in advance. Besides, the price of GT-400R is much more competitive than large four-side planer.
Specification Table
|
Double surface planer & Rectangular rip saw
|
|
Model: GT-400R
|
|
Maximum width of cut
|
405mm
|
|
Maximum thickness of cut
|
300mm
|
|
Minimum thickness of cut
|
10mm
|
|
Minimum length of cut
|
250mm
|
|
Knife NOs.
|
204pcs
|
|
Knife size
|
TCT 15*15*2.5 mm
|
|
Cutter-head speed
|
5000 rpm
|
|
Variable feed speed
|
8-24m/min-inverter
|
|
Top Cutter-head drive motor
|
10HP
|
|
Bottom Cutter-head drive motor
|
7.5HP
|
|
Feed drive motor
|
2HP
|
|
Upper mechanism elevation motor
|
1/2HP
|
|
Saw Motor
|
10HP
|
|
Machine Dimensions(LXWXH)
|
232*125*183CM
|
|
Net weight
|
2400kgs
|
|
Packing Dimensions(LXWXH)
|
240*133*207CM
|
|
Gross Weight
|
2600kgs
|
|
CE REGULATION
|
