Automatic single planer GT-400J for GOODTEK MACHINERY CO., LTD.

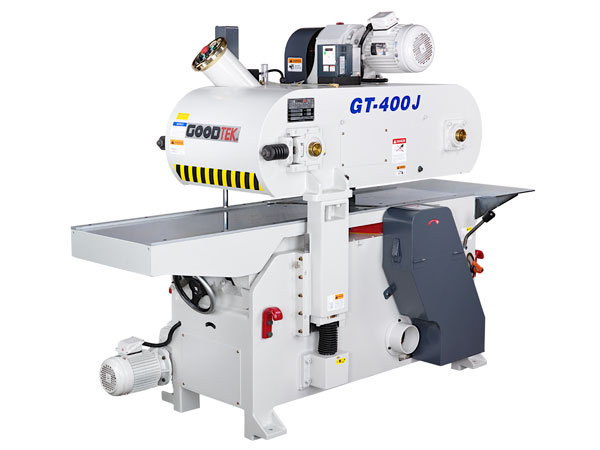

Automatic single planer GT-400J

Product ID: GT-400J

The Automatic single planer is our new model with high speed bevel spindle auto jointer. High speed means feed speed is 8 to 40m/min; bevel spindle is designed to be suitable for short workpiece processing that minimum length of cut is 100mm.

The Automatic single planer is our new model with high speed bevel spindle auto jointer. High speed means feed speed is 8 to 40m/min; bevel spindle is designed to be suitable for short workpiece processing that minimum length of cut is 100mm.

Auto jointer of GT-400J is like hand-jointer (only bottom spindle) but with automatic feed system. Compare with hand-jointer, its feed speed is very fast and the finished product is almost the same with hand-jointer.

The heavy duty planer of GT-400J offers performance and value, loaded with standard features which could not be found on other machines in its class.

Specification Table

HIGH Speed Bevel Spindle Auto Joiner

Model: GT-400J

Maximum width of cut

405mm

Maximum thickness of cut

200mm

Minimum thickness of cut

8mm

Minimum length of cut

100mm

Knife NOs.

120pcs

Knife size

TCT 15*15*2.5 mm

Cutter-head speed

6000 rpm

Variable feed speed

8-40m/min-inverter

Cutter-head drive motor

7.5HP

Feed drive motor

2HP

Upper mechanism elevation motor

1/2HP
