2 side planer GT-400S for GOODTEK MACHINERY CO., LTD.

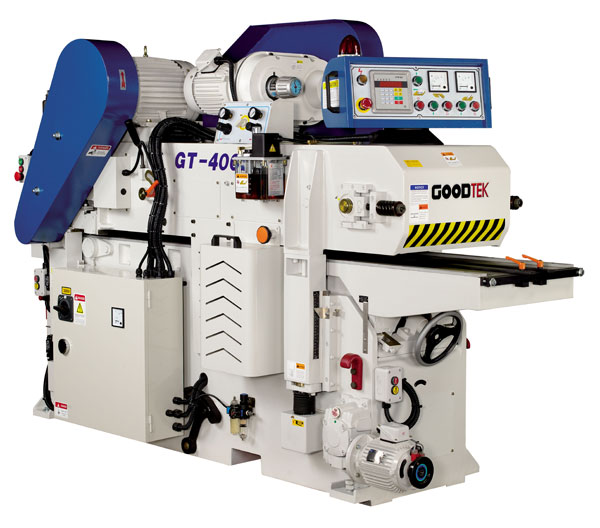

2 side planer GT-400S

Product ID: GT-400S

2 side planer is equipped with many different functions that can solve the problem of short material processing. We also design the operation mode for short or long workpiece.

2 side planer GT-400S
Due to the lack of wooden material has increased day by day, how to recycle wood waste has become a key point of woodworking market competition.


To save the waste of wood, a double- side planer with precise surface is the first important process during manufacturing. It’s based on providing the same thickness material so that the result of final process will be more obvious. Due to this, it’s our first chief job to develop Super Short Material of Double-Side Planer (Min. length 100mm).


2 side planer is equipped with many different functions that can solve the problem of short material processing. We also design the operation mode for short or long workpiece. This can extend its function more efficiently. The completed equipment of GT-400S include special spiral cutter head, automatic digital position setting device for thickness, easy handling control panel for operation, atmospheric pressure device for pressing material and some patenting devices. GT-400S meets customers’ needs and creates more profit for woodworking industrials.

Specification Table

Double surface planer(16”)-patented model

Model: GT-400s

Motor

7.5HP,7.5HP,2HP,1/2HP

Maximum width of plane

405MM

Maximum height of plane

200MM

Minimum thickness of plane

8MM

Minimum length of plane

100 MM

Cutter-head speed

5000RPM

Variable feed speed

8-24m/min-inverter

Knife Nos. on top cutter-head

96 PCS

Knife Nos. on bottom cutter-head

120 PCS

Digital positioning control

Spiral cutter-head (TCT knife size)

15*15*2.5MM-top and bottom

Dust hood outlet diameter

5"

Table surface area

19" X 97"

Machine Dimensions(LXWXH)

270*98*187CM

Net weight

2000kgs

Packing Dimensions(LXWXH)

278*106*194CM

Gross Weight

2500kgs
