Double Sided Planer Machine

Product ID: GT-400B

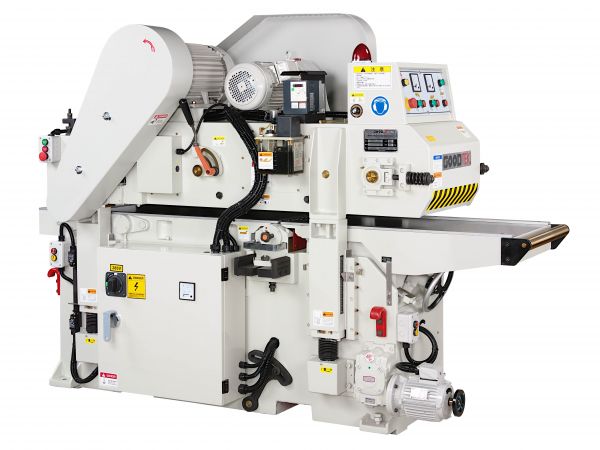

Double Sided Planer Machine

Double side planer for large workpiece! Catering to the requirements of furniture and construction industries, we have come up with a comprehensive range of wood planers.

Double Sided Planer Machine pressure spikes are in an overlapped layout with a minimum of gaps that hold the workpiece firmly and evening ensuring shake-free feeding, even for short workpiece.

Reduce wear caused by temperature rise and improve efficiency of power transmission.

The bottom cutterhead can be conveniently pulled out and is combined with an air wrench for greatly saving knife change time.

The automatic lubricator delivers frequent lubrication oil to the caterpillar chain.

Digital display and quick operation to reduce wear on mechanical gearbox.

Instant response and emergency stop to any abnormality, or just to stop/start the feeding, and provide the operator at the rear to perform on-site height adjustment of machine.

Specification

  • Working width 405mm(16")
  • Suitable for planning short workpieces
  • Equipped with a plain cutterhead
  • Feeding inverter with an additional gear reducer

STANDARD ACCESSORIES

  • Well laid-out pressure spikes
  • Fast knife replacement
  • Fast and convenient belt tension adjustment.
  • Automatic lubricator
  • Feeding inverter
  • Gear reducer
  • Quick thickness setting(standard equipment on models GT-610A and GT-635ARD only Optional for other models)
  • Rear control device
  • Centralized hand lubricator(standard equipment on models GT-610A and GT-635ARD only Optional for other models)
  • The three table rollers provide superior feeding performance
  • Standard Y-delta motor starting
  • Quick belt change for bottom cutterhead
  • Automatic lubrication for feeding chain
  • Automatic lubricator provides convenient lubrication to caterpillar chain slideways(optional)
  • An air wrench is applied for removing or installing knives and saves knife change time
  • Optional spiral cutter head for the upper and lower cutter heads
  • The table surface is hard chrome plated and precision ground for extremely smooth feeding and maximum wear resistance
  • The dovetailed slideways on the table elevation assure outstanding rigidity and stability
  • Sectional infeed rollers

Specification Table

Model GT-400B
Maximum Width Of Cut 405mm ( 16" )
Maximum Thickness Of  Cut 200mm ( 8" )
Minmum Thickness Of Cut 8m
Minmum Lenght Of Cut 250mm
Knife Nos. On Bottom Cutterhead 4pcs
Knife Sizes 405x3x30mm(16"x1/8"x1-1/8")
Cutterhead Diameter Ø101mm
CutterHead Speed 4000RPM
Variable Feed Speed 8-24m/min
Dust Hood Outlet Diameter 5" x 2
Table Surface Area 19"x86"
Top Cutterhead Drive Motor 10HP
Buttom Cutterhead Drive Motor 7.5HP
Feed Drive Motor 2HP
Upper Mechanism Elevation Motor 1/2HP
Machine Dimensions(LxWxH) 2200x900x1700mm
Net Weight 1900kg
Packing Dimensions(LxWxH) 2350x1060x1940mm
Gross Weight 2100kg
※ To ensure technological excellence, specifications are subject to change without prior notice。
